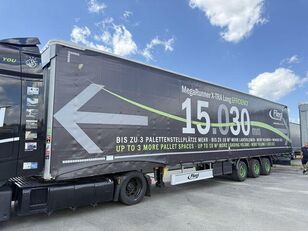

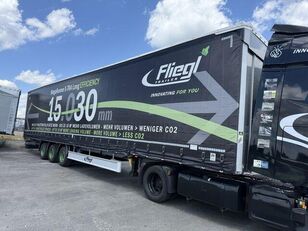

Полуприколка завеса Fliegl 3-Achs Gardinensattel Mega Xtra-Lock

Description: Curtainsider semi-trailer
Functionality: fully functional
Attention: The images are archive photos. The vehicle may be in use!
Note: free landing leg corner clearance / free swing radius to the rear approx. 1930 mm
Sliding roof, rear end section can be folded up, roof slides from rear to front, L-shaped roof rail for automotive industry, internal width between roof rails approx. 2 490 mm, curtain colour: white, lifetime "breakage guarantee", Roof non-elastic, minimal roof rail deflection during loading and unloading
axle configuration: 3 axles
#Chassis – haulage semi-trailer
Fifth wheel plate with replaceable 2" kingpin
Outer frame slightly inclined
new design with "Load-Lock-Profil" for attaching lashing straps
24 t 2-speed landing gear
one-side operation
with straight lower section
with movable thrust compensation

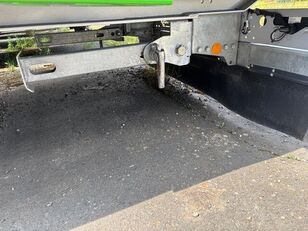

Pull-out ladder at rear
Side door holders
Rear underrun protection
galvanised steel
Anti-spray mud flaps according to EC
Nock S Tpo Ad N Dbs Uuswn
Rear corner impact protection
Pallet stop on both sides approx. 15–20 mm high
bolted design
loading height reduced by approx. 15–20 mm
Plastic toolbox
#Axles + suspension
Disc brake axles with 430 mm disc diameter
Laser-aligned axles/running gear – reduced tyre wear and fuel consumption
#Braking system
2-line air brake system
Colour-coded line routing for easy servicing
Spring brake parking brake
2 non-interchangeable coupling heads at front
electronic braking system with EBS socket at front
with raise & lower valve
Vehicle stability system
Axle load detection via EBS CAN bus signal
for display in the driver's cab
AAC Basic
automatic load relief on the last axle as manoeuvring aid
up to 20 km/h
can be switched off manually
#Wheels and tyres
435/50 R19.5" make at manufacturer's discretion
Steel rims
factory silver
#Electrics
24 volt
multi-chamber lamps
yellow LED side lighting
Yellow LED side lighting coupled with indicators
2 white front position lamps
2 white/red rear outline marker lights
Red/yellow non-interchangeable coupling heads
#Floor
Screen-printed plywood approx. 30 mm thick
on longitudinal bearers for high point loading
forklift axle load max. 7100 kg
#Front wall / front corner posts
2 580 mm high
heavy-duty steel corner posts
release device for side curtain at front wall
"Crash-Blocker"
lower inside at approx. 140 mm height with steel impact protection
#Centre stanchions
3 pairs of sliding stanchions
movable along the full length
with 4-fold insertion pockets and long pocket at the bottom
3 pairs of stanchion positions
#Insert boards
Wooden insert boards
#Rear wall / rear corner posts
Steel rear corner posts up to lower edge of roof
curtain attachment with round tube and curtain tensioning ratchet
Rear portal doors
2-leaf
each with 2 internal turn-rod locks
#Curtain
Curtain with welded-in horizontal and vertical straps
Stainless steel tensioning buckles
#Roof
Fliegl-Blitz-Verdeck
#Approval
with DEKRA inspection and expert report (acc. to §13 EG-FGV)
Fliegl manufacturer's certificate for body strength acc. to EN 12642 XL
acc. to DL 9.5 and load securing acc. to VDI 2700 sheet 12 ff
Warning sign for longer vehicle
Expert report for longer vehicle combination
